The 2022 Coachmen Galleria 24Q, built on the Mercedes-Benz 3500XD Extended Sprinter AWD chassis, is a luxury Class B motorhome designed for travelers who expect more from the road. Whether youâre touring the country, tailgating in style, or working on the go, the Galleria 24Q delivers quality, comfort, and confidence behind the wheel.
Built for All-Season Travel

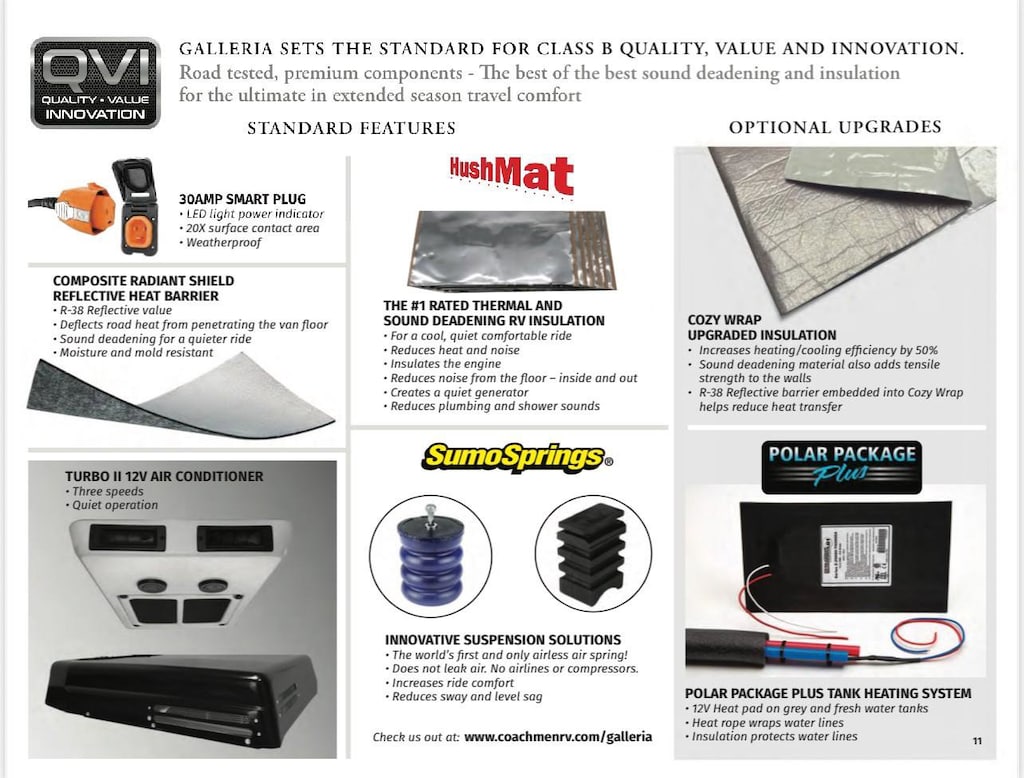

R-15 rock and steel-based insulation
Sound-deadening Cozy Wrap with R-38 reflective barrier
Marine-grade vinyl walls with 3/8â foam backer
Composite radiant heat barrier and HushMat for reduced noise and vibration
Heavy-duty industrial flooring
Optional Polar Package Plus with heated tanks and protected water lines
SumoSprings upgraded suspension for a smoother ride
Interior Features
Onyx interior decor with High Gloss Maple cabinetry
Four heated swivel captainâs chairs with self-leveling armrests
Power rear sofa converts into a 68â x 76â bed
Full wet bath with hardwood vanity and shower
Galley kitchen with induction cooktop, convection microwave, refrigerator/freezer, and deep sink
Turbo II 12V air conditioner with quiet three-speed operation
Smart control panel for tank levels, lighting, power, and climate management
Mercedes-Benz AWD Chassis Technology
3.0L V6 turbo diesel engine, 188 hp, 325 lb-ft torque
7-speed automatic transmission
All-Wheel Drive system for superior traction and stability
MBUX infotainment system with 10.25â touchscreen
Apple CarPlay, Android Auto, and âHey Mercedesâ voice control
Newly added 360-degree camera system for full surround visibility
Advanced safety features including blind spot assist, lane keep assist, and collision avoidance
Specifications
GVWR: 11,030 lbs
GCWR: 15,250 lbs
Towing capacity: 5,000 lbs
Fuel capacity: 24.5 gallons
LP capacity: 9.7 gallons
Fresh water: 27 gallons
Grey water: 22 gallons
Black water: 19 gallons
Exterior height: 9â 6â
Exterior length: 24â 3â
Power awning: 13â 1â
Now Available at Mercedes-Benz of Ft. Mitchell
Finished in Brilliant Silver with Onyx interior and High Gloss Maple cabinetry, this AWD Galleria 24Q is fully loaded and in stock. VIN: W1X8ED6YXMT055584. Includes upgraded 360-degree camera system.
Used 2021 Mercedes-BenzSprinter Cargo Van 3500XD High Roof V6 170 Extended 4WD
- Exterior Color
- Iridium Silver
- Interior Color
- Black
- Odometer
- 16,744 miles
- Transmission
- Automatic
- Drivetrain
- 4WD
- Engine
- 6
- VIN
- W1X8ED6YXMT055584
- Stock Number
- 36T3190
Highlighted Features
- Emergency communication system
- Wireless phone connectivity
- Exterior parking camera rear
- Remote keyless entry
- Steering wheel mounted audio controls
- Fully automatic headlights
- Dual rear wheels
- Heated door mirrors
Included Packages & Accessories
Detailed Specifications
- 1-touch down
- Air conditioning
- Driver door bin
- Emergency communication system: eCall Emergency System
- Front beverage holders
- Illuminated entry
- Overhead console
- Passenger door bin
- Power windows
- Proximity key: push button start only
- Remote keyless entry
- Residual heat recirculation
- Speed control
- Tilt steering wheel
- Dual rear wheels
- Front anti-roll bar
- Front tires: 215/85SR16.0E
- Front wheel independent suspension
- Power steering
- Rear tires: 215/85SR16.0E
- Speed-sensing steering
- Wheel size: 16"
- Speakers: 5
- Steering wheel mounted audio controls
- Wireless phone connectivity: Bluetooth
- Driver seat mounted armrest
- Front seats: bucket
- Passenger seat mounted armrest
- Compressor: intercooled turbo
- Cylinder configuration: V-6
- Drive type: four-wheel
- Engine liters: 3.0L
- Engine location: front
- Fuel tank capacity: 24.5gal.
- Horsepower: 188hp @ 3,800RPM
- Hybrid traction battery type: none
- Manual-shift auto
- Number of valves: 24
- Recommended fuel: Diesel
- Standard fuel economy fuel type: diesel
- Torque: 325 lb.-ft. @ 1,400RPM
- Transmission: 7 speed automatic
- Ground clearance (min): 208mm (8.2")
- Bodyside moldings
- Heated door mirrors
- Power door mirrors
- Rear cargo: split swing-out
- Compression ratio: 18.00 to 1
- Curb weight: 2,790kg (6,151lbs)
- Engine bore x stroke: 83.0mm x 92.0mm (3.27" x 3.62")
- Engine displacement: 3.0 L
- Engine horsepower: 188hp @ 3,800RPM
- Engine torque: 325 lb.-ft. @ 1,400RPM
- Exterior body width: 2,019mm (79.5")
- Exterior height: 2,809mm (110.6")
- Exterior length: 7,366mm (290.0")
- Front headroom: 1,433mm (56.4")
- Front hiproom: 1,618mm (63.7")
- Front legroom: 988mm (38.9")
- Front shoulder room: 1,712mm (67.4")
- GVWR: 5,003kg (11,030lbs)
- Interior maximum rear cargo volume: 13,292 L (469 cu.ft.)
- Payload: 2,213kg (4,879lbs)
- Turning radius: 7.7m (25.1')
- Wheelbase: 4,318mm (170.0")
- Appearance: analog
- Exterior parking camera rear
- Fully automatic headlights
- Outside temperature display
- Tachometer
- 4 wheel disc brakes
- ABS brakes
- Brake assist
- Dual front impact airbags
- Dual front side impact airbags
- Electronic stability
- Ignition disable
- Occupant sensing airbag
- Overhead airbag
- Traction control
